SH017 (PiToDIN)
PLC compuer based on miniPC raspberryPI 6xmodule wide DIN castle
This control unit who force for home automation is oversize, can control almost anything from anywhere. For his exist many programs from home automation to automation of complex manufacturing processesbig, from free programs to big profesional controls system. Common user need not worry about control, our module comes preloaded programs with a precinfiguration system with easy use.
HW properties
- Proccesor: 64-bit 4xcore 1.2GHz
- Memory: RAM 1GB
- microSD card: delivery with 8GB (max. 32GB)
- grapfic :
- build monochrome display 124x64 bodu (white backlight)
- HDMI for connect externaly monitor or TV up to FullHD (1920x1080) - sound:
- build easy beeper
- 3.5 jack for headphonespro sluchátka or external amplifier
- HDMI sound through externam monitor or TV - clock: real time backup by battry
- Comunication interfaces:
- 4xUSB 2.0
- Ethernet 10/100Mb
- Wi-Fi 802.11 b/g/n
- Bluetooth 4.0
- options receiver-transmitter on 433MHz - control wriless sockets, meteostations, ect.
- 1 wire (5V logic level) - connection various sensor and input-output modules.
- RS485 - connection various industrial sensors and modules
- RS232 - seriová linka (sílena s RS485)
-2 x optical isolated input
- 2x optical isolated output
- 4x relay
SW equipment
The module delivered with pre-installed microSD card containing RASBIAN OS (a modified version of Debian, one of the most popular Linux distributions). The operating system is preset so that it can be easily and immediately control without additional installation and configuration. Ordinary users can then use a preinstalled system with home automation (see. Below). Using them can easily clicks may control your home without any specialist knowledge. For the control of complex regulations or production lines can be after buying the license to use eg. Plzeňské fi system. REXcontrols, or install any custom. Finally, for programmers and developers are ready to sample codes in several programming languages.
System home automation DOMOTICZ
www.domoticz.com
Very successful project home automation system. Excellent choice for casual users. Countain support thousands of different wired and wireless sensors, modules and interfaces. Additionally, is under the open source license, so it is free. This system exists for clients on both Android and IOS. Dominate can generalize to several step:
- Hardware selection (it may be meant one sensor, or a box supported by the manufacturer which is connected to multiple element on the bus or which may be more elements)
- Registration: Select the hardware will appear all the available sensors, switches, sensors etc.. Here we can named and register for future use.
- Definition groups and scenes.
Groups e.g. maz be more lights that are controlled by one button. In
scenes can be defined e.g. that light be patches and taht payouts.
Scenes can then also be controlled by one button.

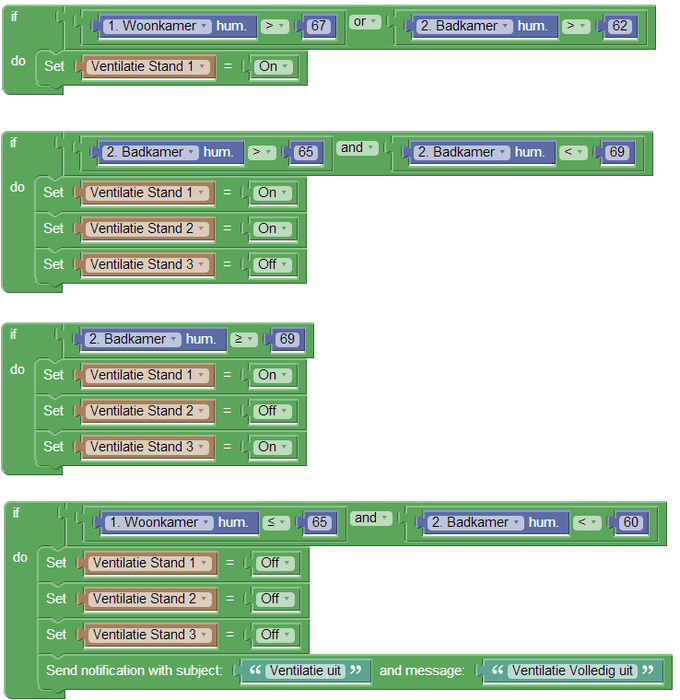

- Programming event. E.g. excess temperature triggered something, or dropping light on the light sensor switches on a particular scene, etc. . Events are programmed (if you can call it programming) graphically drag and drop puzzles colored with a different meaning to each other.

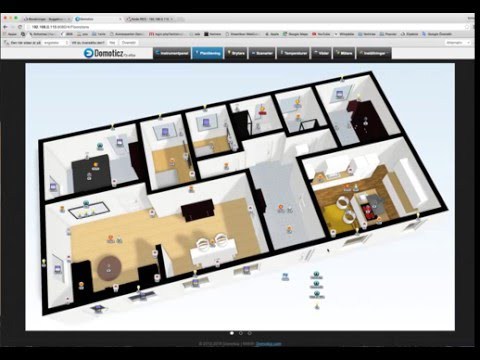

- Visualization. Uploading pictures floor, or schemes to which we can drag selected sensors, switches, etc. and create a kind of visual image from which you can also control draged elements.
System REX controls
www.rexcontrols.com
Suitable for complex regulation and control production lines. REX
control system is commercial set of software tools for the control of
machines, technologies and processes. Can be used in all areas of
automation, robotics, measurement and control. For full use of them to
buy a separate license on www.rexcontrols.cz. Otherwise the system can only be used in demo mode, which runs only two hours, then the need to reset it.
The
system itself consists basicaly of tree parts, performance parts (ie.
Core) and running directly placed in the module together with
presentation part. And propose a program that is installed on a separate

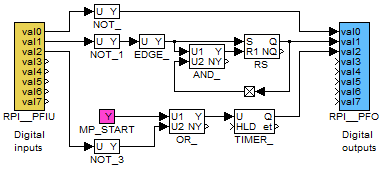

Windows PC. In this program, draws sheme with funcctions blocks, and
result naz be load into our module.
Also this system enables the visualization for different interfaces as desktop, tablet and smartphone.
